SPECIFICATIONS

Applicable glass door thickness: 10-12mm

Brand Name: LEEDOAR

Certification: CE,FCC,RoHS,UL

Connectivity: Bluetooth

Display: HD color screen

Doorknob Funcition: Biometric,Key & Keypad

Finish Type: Polished

Fit Door Thickness: 10-12 MM

Handle Direction: Direction Reversible

High-concerned chemical: None

Installation method: No hole opening clip installation

Material: Aluminium Alloy

Model Number: YK100

Origin: Mainland China

Power Supply: DRY BATTERY

Protection Level: IP67

Smart home platform: None

Suitable Door Type: Wooden Door

Unlocking method: fingerprint + IC card + password + applet

Voice support: Chinese/English system

Ways To Unlock: App,Card,Password,FINGERPRINT

Working temperature range: -20°℃-55℃

Single-sided movable door + frameless + side wallSingle-sided movable door + frameless + side glassDouble-sided movable door + frameless + floor plugDouble-sided movable door + frame + floor plug Performance parameters:Display: HD color screenMode: Built-in doorbell button + touch doorbell button + doorbell rings automaticallyUnlocking method: fingerprint + IC card + password + appletLock tongue material: stainless steelVoice support: Chinese/English systemInstallation method: No hole opening clip installationTemporary password time limit: 5 minutesRecognition error: ≤0.0001%Sensing recognition speed: 0.5 seconds Environmental parametersPrompt sound: low battery alarmIndoor knob switch: automatic lock when closing the door + indoor mechanical knob unlockWorking temperature range: -20°℃-55℃Single door installation specifications:Glass thickness: 1.0-1.2cm; Glass gap: 0.4-1.2cm; (Note: single-open frameless wall)Glass thickness: 1.0-1.2cm; Glass gap: 0.4-1.2cm; (Note: single-open frameless glass)Double door installation specificationsGlass thickness: 1.0-1.2cm; Glass gap: 0.4-1.2cm; (Note: double-open frameless, need to be used with ground plug)Door thickness: no requirement; Door gap: 0.4-1.2cm; (Note: double-open framed (edge door or wooden door) need to be installed with holes; framed edged glass door, please confirm whether the frame is hollow and can be punched) Physical parameters:Applicable glass door thickness: 10-12mmPower supply voltage: DC 4-6VPower supply mode: 4 No. 5 alkaline batteries/Micro-USB emergency power interfaceSupport EXCEL outputStorage capacity:Users: 100Fingerprints: 100Passwords: 1000 groupsID cards: 1000

How to choose the right door type?

A. Single-opening frameless, the other side is a wall

Installation requirements

Glass thickness: 1.0-1.2cm

Glass gap: 0.4-1.2cm

B. Single-opening frameless, the other side is glass

Installation requirements

Glass thickness: 1.0-1.2cm

Glass gap: 0.4-1.2cm

C. Double-opening frameless, ground plug required

Installation requirements

Glass thickness: 1.0-1.2cm

Glass gap: 0.4-1.2cm

Note: Ground plug required

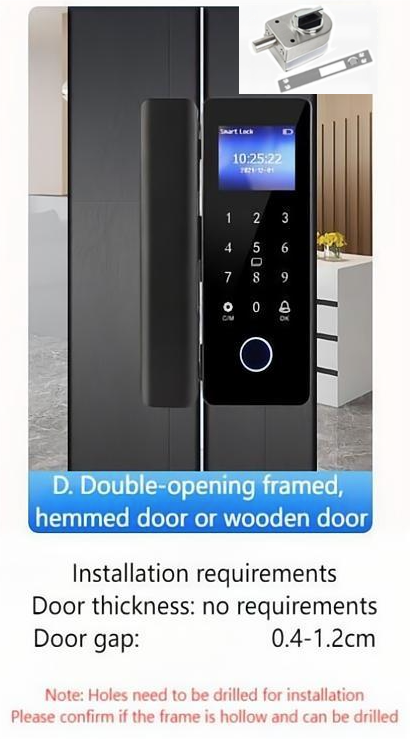

D. Double-opening framed, hemmed door or wooden door

Installation requirements

Door thickness: no requirements

Door gap: 0.4-1.2cm

Note: Holes need to be drilled for installation

Please confirm if the frame is hollow and can be drilled
